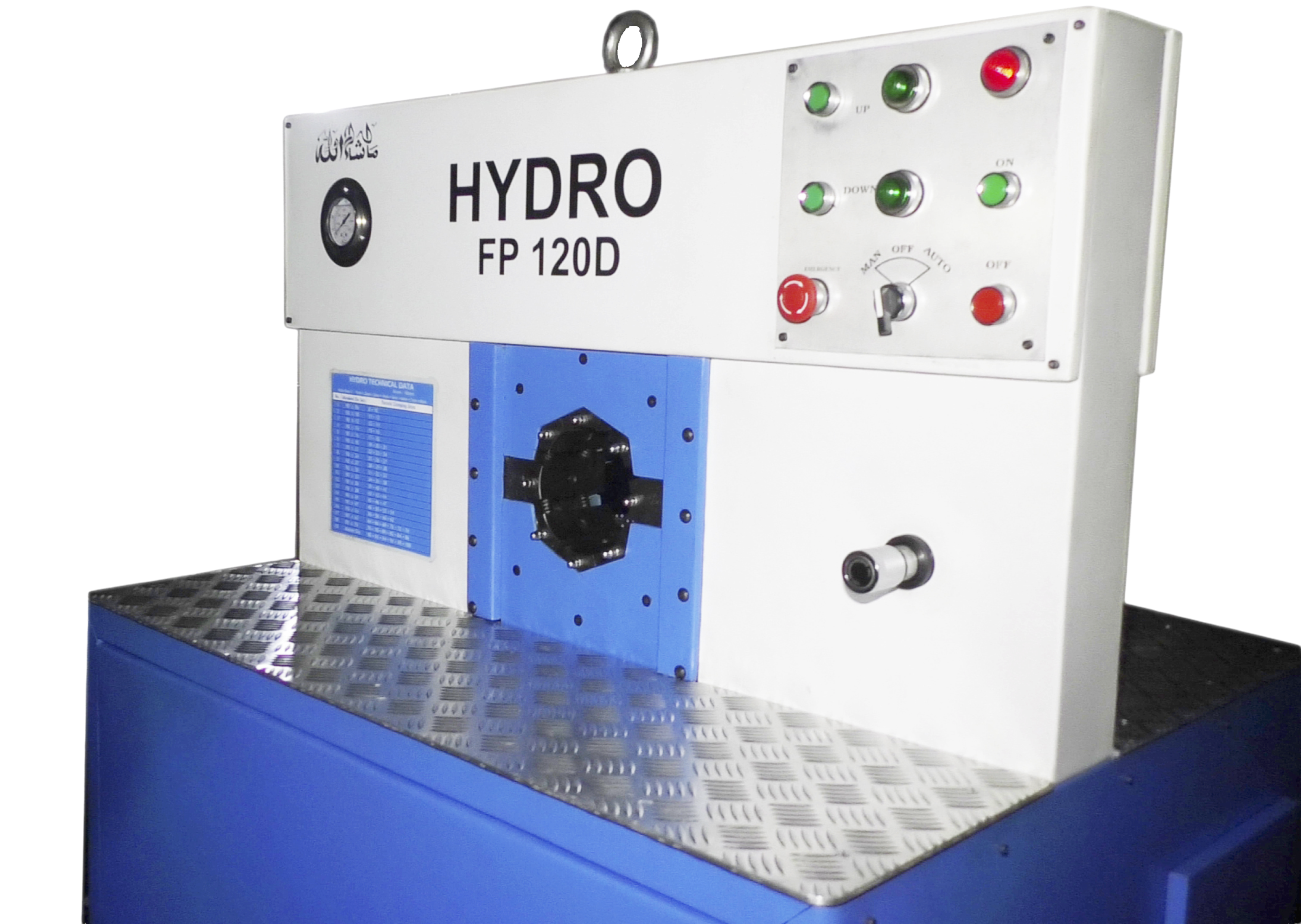

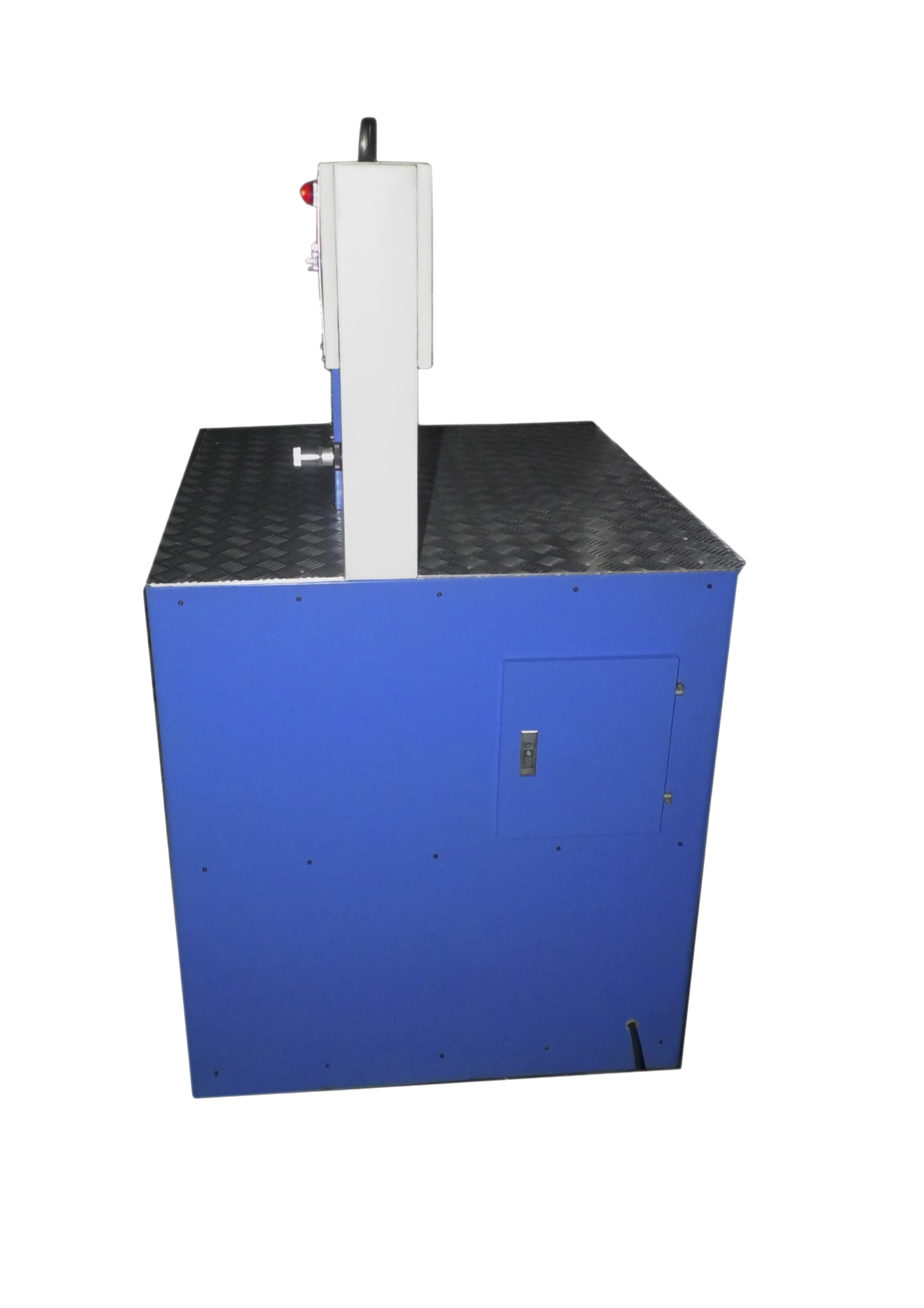

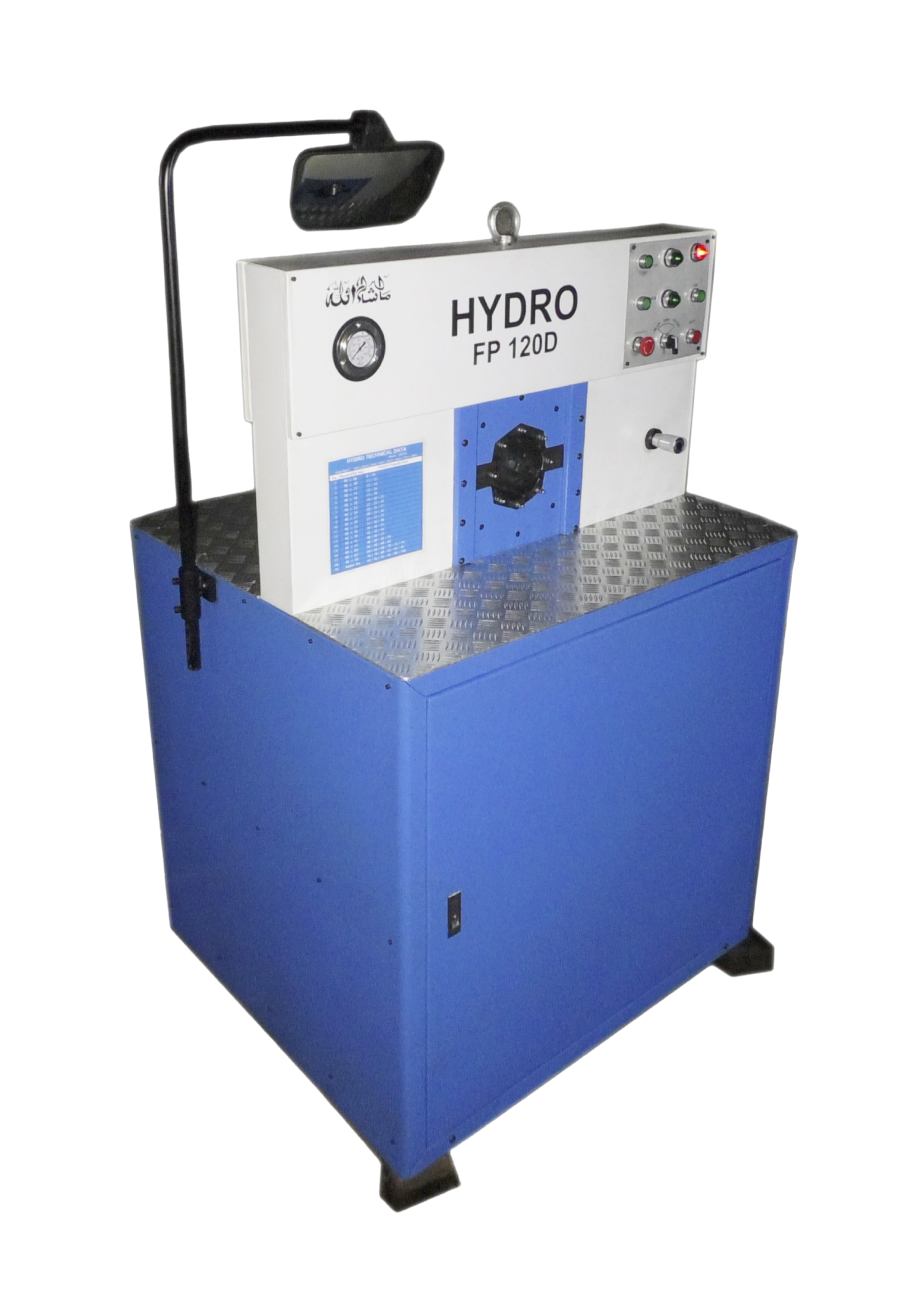

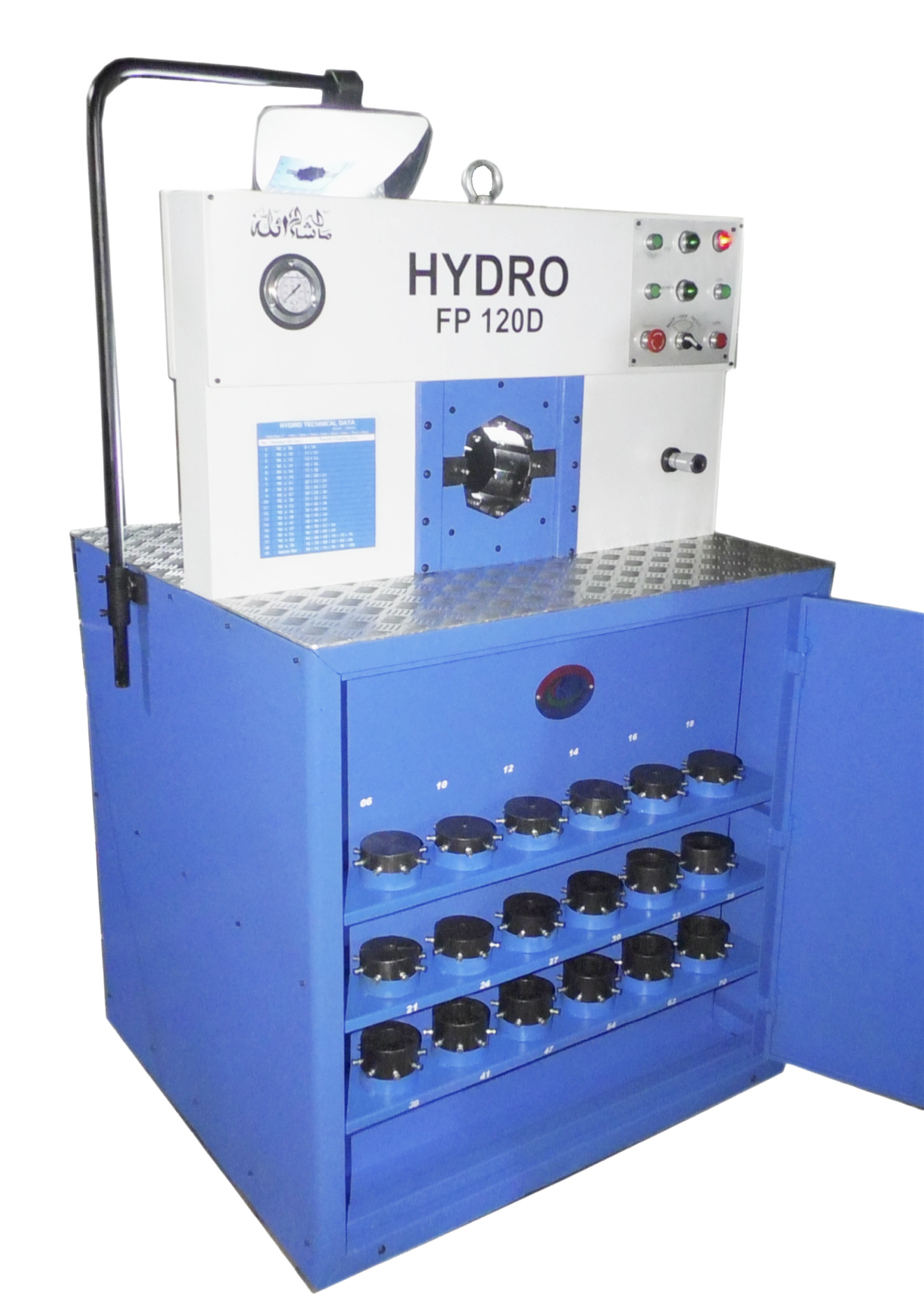

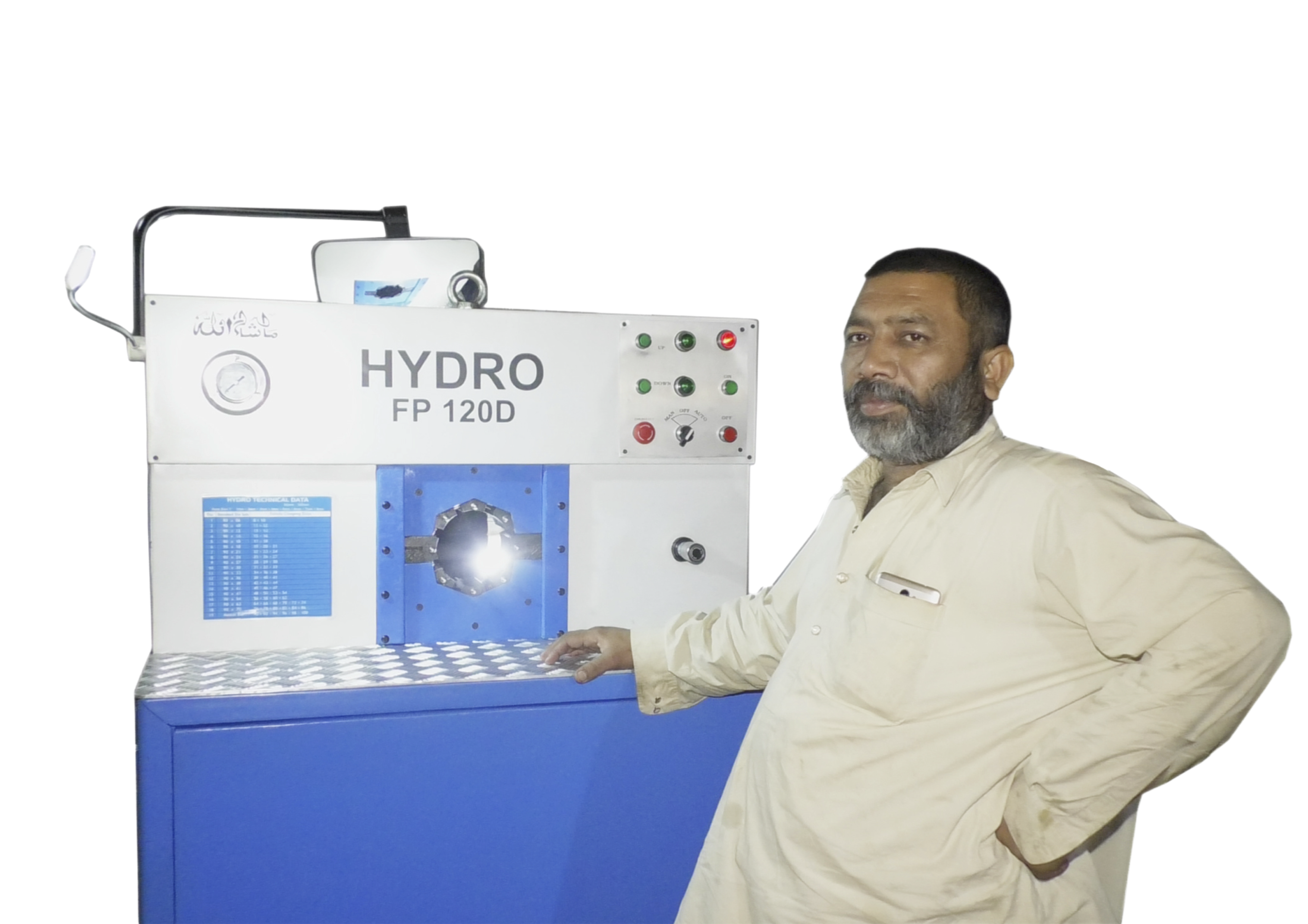

Hydraulic Hose Crimping Machine ( Model#: FP-120D )

Available Sizes

1/4" to 3" - Model: FP-120D-3

1/4" to 4" - Model: FP-120D-4

1/4" to 6" - Model: FP-120D-6

1/4" to 8" - Model: FP-120D-8

1/4" to 10" - Model: FP-120D-10

1/4" to 12" - Model: FP-120D-12

Hydro Technical Data

16mm - 120mm

Hose crimping size 1/4" upto 4" 1mm + 2mm + 3mm + 4mm + 5mm + 6mm +7mm + 8mm

No.	Standard Die Sets	Ferrule Size
1	110 x 75 x 14	16+18+20
2	110 x 75 x 19	22+24+26
3	110 x 75 x 23	28+30+32
4	110 x 75 x 27	34+36+38
5	110 x 75 x 31	38+40+42
6	110 x 75 x 36	42+44+46
7	110 x 75 x 41	46+48+50
8	110 x 75 x 47	52+54+56+58
9	110 x 75 x 54	58+60+62+64+66
10	110 x 75 x 63	68+70+72+74+76
11	110 x 95 x 70	76+78+80+82+84+86+88
12	110 x 95 x 86	90+92+94+96+98+100+102+104+106
13	195 x 95 x 110	115+120 Master die
Weight Without Oil 220KG
