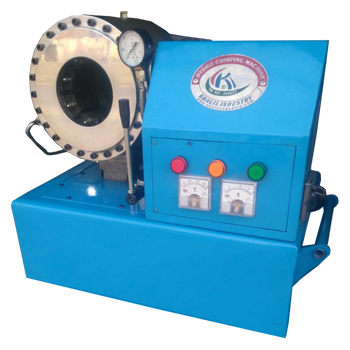

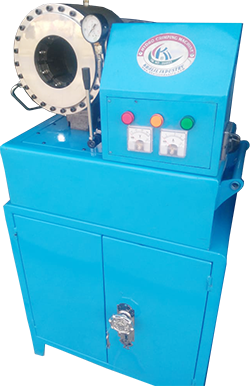

Hydraulic Hose Crimping Machine ( Model#: HCM-2185 )

Hydro Technical Data

12mm - 85mm

Hose crimping size 1/4" upto 3" 1mm + 2mm + 3mm + 4mm + 5mm + 6mm +7mm + 8mm

No.	Standard Die Sets	Ferrule Size
1	90 x 75 x 10	12+13+14+15
2	90 x 75 x 14	16+17+18+19
3	90 x 75 x 19	20+21+22+23+24
4	90 x 75 x 23	25+26+27+28+29
5	90 x 75 x 27	30+31+32+33+34
6	90 x 75 x 31	35+36+37+38+39
7	90 x 75 x 36	40+41+42+43+44
8	90 x 75 x 41	45+46+47+48+49+50
9	90 x 75 x 47	51+52+53+54+55+56+57
10	90 x 75 x 54	58+59+60+61+62+63+64+65
11	90 x 75 x 63	66+67+68+69+70+71+72+73
12	90 x 75 x 70	74+76+80+85 Master die
Weight Without Oil 160KG
